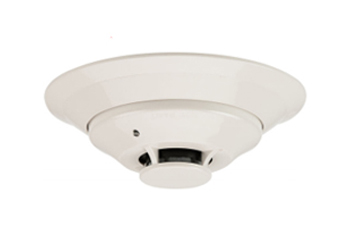

SD355(A) Series Addressable Photoelectric Smoke Detectors


Product Description

The SD355(A), SD355T(A), and SD355R(A) addressable, low-profile plug-in photoelectric detectors use a state-of-theart photoelectric sensing chamber with communications to provide open area protection and are used exclusively with Fire•Lite’s Addressable Fire Alarm Control Panels (FACPs). The SD355T(A) adds thermal sensors that will alarm at a fixed temperature of 135°F (57°C). Since these detectors are addressable, they will help emergency personnel quickly locate a fire during its early stages, potentially saving precious rescue time while also reducing property damage. Two LEDs on each sensor light to provide a local, visible sensor indication. Remote LED annunciator capability is available as an optional accessory, PN RA100Z(A). The SD355R(A) is a remote test capable detector for use with D355PL(A) or DNR(A)/DNRW duct smoke detector housings

Key Features


  • Two-wire loop connection.
  • Unit uses base for wiring
  • 94-V0 plastic flammability rating
  • Rotary, decimal addressing: 01 – 99 with MS-9200UD(LS), and 01 – 159 with MS-9600UD(LS).
  • Unique single-source, dual-chamber design to respond quickly and dependably to a broad range of fires.
  • Sleek, low-profile design
  • Integral communications and built-in type identification.
  • Built-in tamper-resistant feature.
  • Withstands air velocities up to 4,000 feet-per-minute (20 m/ sec.) without triggering a false alarm.
  • Factory preset at 1.5% nominal sensitivity for panel alarm threshold level.
  • Visible LED “blinks” when the unit is addressed (communicating with the fire panel) and latches on in alarm.
  • Sealed against back pressure.

Installation & Operation


SD355(A) series plug-in detectors use a detachable mounting base to simplify installation, service and maintenance. Mount base (all base types) on an electrical backbox which is at least 1.5" (3.81 cm) deep. For a chart of compatible junction boxes, see DF-60059. NOTE: Because of the inherent supervision provided by the SLC loop, end-of-line resistors are not required. Wiring “T-taps” or branches are permitted for Style 4 (Class B) wiring. SD355R(A) mounts in a D355PL(A) or DNR(A)/DNRW duct detector housing.

Each SD355(A) series detector uses one of 99 possible addresses on the MS-9200UD(LS) and up to 318 (159 on each loop) on the MS-9600UD(LS) Signaling Line Circuit (SLC). It responds to regular polls from the system and reports its type and status. The addressable photoelectric sensor in the SD355(A) series has a unique unipolar chamber that responds quickly and uniformly to a broad range of smoke conditions. It can withstand wind gusts up to 4,000 feet-per-minute (20 m/sec.) without sending an alarm level signal. Because of its unipolar chamber, the SD355(A) series is approximately two times more responsive than most photoelectric sensors. This makes it a more stable detecto

Product Line Information


  • SD355: Addressable photoelectric detector; B210LP base included
  • SD355A: Sames as SD355 with ULC Listing; B210LPA base included.
  • SD355T: Same as SD355 but with thermal element; B210LP base included.
  • SD355TA: Same as SD355T with ULC Listing; B210LPA base included.
  • SD355R: Remote test capable addressable photoelectric detector for use with a D355PL(A) or DNRA/DNRW duct detector housing; B210LP base included.
  • Remote LED output connection, PN RA100Z(A)
  • Sealed against back pressure.

Applications & Construction


Use photoelectric detectors in life-safety applications to provide a broad range of fire-sensing capability, especially where smoldering fires are anticipated. Ionization detectors are often better than photoelectric detectors at sensing fast, flaming fires.

These detectors are constructed of off-white fire resistant plastic. SD355(A) series plug-in, low-profile smoke detectors are designed to commercial standards and offer an attractive appearance.
