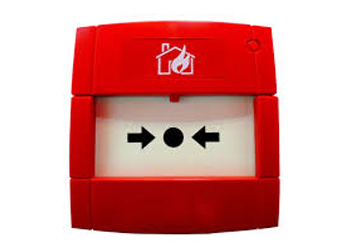

FL/MCP/MMF301 Call Point Analogue Addressable Module


Product Description

FL/MCP/MMF301 without an integral isolator is a call point designed to provide a manual alarm interface to a Firelite's fire alarm control panel. Installation efficiency and flexibility is offered at the heart of the call point range. Both break glass and resettable operating elements can be used in the standard unit. Operation of the re-settable element is indicated by a yellow strip on the element which becomes visible when activated. With the addition of a hinged transparent cover the element may be protected against accidental operation and may be further protected by using a cover seal which requires breaking in order to operate the unit. The call point uses one of 159 possible addresses which is simply 'dialled in' using the two rotary decade switches on the rear of the unit. A specialist test key may be inserted into the bottom of the unit to lower the resettable flex portion and release the micro-switch and thus a full functional test is achieved.

Key Features


  • Unique 'Plug & Play' installation concept
  • Re-settable operating element option
  • Analogue addressable communications
  • Semi-Flush or surface Mounting
  • Backward compatibility
  • Enhanced aesthetics
  • Extended warranty

Installation


These call points are suitable for semiflush mounting as standard, for indoor use. This uses a single-gang electrical knock-out box in conjunction with a terminal tray for isolated screen continuity connection. However if surface mounting is required, then a matching single terminal back box is also available. Mounting hardware and installation instructions are provided with each module.

Ordering Information


    PART NO.
  • FL /MCP-SF/ MMF-301
  • FL /MCP-FF/ MMF-301
  • FL /MCP-SG/ MMF-301
  • FL /MCP-FG/ MMF-301

Installation


These call points are suitable for semiflush mounting as standard, for indoor use. This uses a single-gang electrical knock-out box in conjunction with a terminal tray for isolated screen continuity connection. However if surface mounting is required, then a matching single terminal back box is also available. Mounting hardware and installation instructions are provided with each module.
