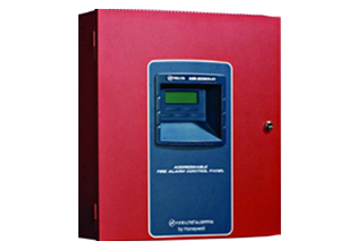

MS-9050UD(E) Fire Alarm Control Panel with DACT


Product Description

The Fire•Lite MS-9050UD(E) is a Fire Alarm Control Panel (FACP) and Digital Alarm Communicator/Transmitter (DACT) combined into one circuit board. This compact, intelligent addressable control panel supports up to 50 addressable devices of any type of detectors and modules. With an extensive list of powerful features, the MS-9050UD programs just like Fire•Lite’s larger products, yet fits into applications previously served only by conventional panels. The MS-9050UD’s integral DACT transmits system status (alarms, troubles, AC loss, etc.) to a Central Station via the public switched telephone network. It also allows remote and local programming of the control panel using the PK-CD Upload/ Download utility. In addition, the control panel may be programmed or interrogated off-site via the public switched telephone network. Any personal computer with Windows™ 95 or greater, and compatible modem with a speed of 14.4 kbps or faster and Fire•Lite Upload/Download software kit PK-CD, may serve as a Service Terminal. This allows download of the entire program or upload of the entire program, history file, walk-test data, current status and system voltages. The power supply and all electronics are contained on a single circuit board supported on a new quick install chassis and housed in a metal cabinet.

Key Features


  • Listed to UL Standard 864, 9th edition.
  • Auto-program (learn mode) reduces installation time. Reports two devices set to the same address
  • On-board DACT
  • Two independently programmable Style Z (Class A) or Style Y (Class B) NAC circuits
  • Selectable strobe synchronization for System Sensor, Wheelock, and Gentex devices
  • Remote Acknowledge, Silence, Reset and Drill via addressable monitor modules
  • Two programmable relays and one fixed trouble relay
  • Built-in Programmer
  • Telephone Line Active LEDs
  • EIA-232 PC interface
  • Integral 80-character LCD display with backlighting.
  • Real-time clock/calendar with automatic daylight savings control.
  • History file with 500 event capacity
  • Automatic detector sensitivity testing (NFPA 72 compliant).
  • Automatic device type-code verification.

PROGRAMMING, SOFTWARE & UI


  • Autoprogram (learn mode) reduces installation time
  • Custom English labels (per point) may be manually entered or selected from an internal library file.
  • Two programmable Form-C relay outputs.
  • 20 software zones
  • Continuous fire protection during online programming at the front panel.
  • Program Check automatically catches common errors not linked to any zone or input point.
  • OFFLINE PROGRAMMING: Create the entire program in your office using a Windows®-based software package(order programming kit PK-CD, containing PS-Tools, separately). Upload/download system programming locally
  • B16 key alpha-numeric pad
  • Alarm Silenced
  • Drill (Manual Evacuate)
  • Reset (lamp test)
  • Acknowledge/Step
  • Alarm Silenced signals (yellow)
  • Supervisory (yellow)
  • Trouble (yellow)

Electrical Specifications


AC Power: MS-9050UD 120 VAC, 60 Hz, 3.0 A. MS-9050UDE: 240 VAC, 50 Hz, 1.5 A. Wire size: minimum 14 AWG (2.00 mm2) with 600 V insulation. Nonpower-limited, supervised. Battery: Two 12 V 18 AH lead-acid batteries. Battery Charger Capacity: 7-18 AH (MS-9050UD cabinet holds maximum of two 18 AH batteries.) Communication Loop: Supervised and power-limited. Notification Appliance Circuits: Terminal Block provides connections for two NACs, Style Y (Class B) or Style Z (Class A). Special Application power. Power-limited, supervised circuitry. Maximum signaling current per circuit: 2.5 A. End-of-Line Resistor: 4.7k ohm, ½ watt (P/N 71252 UL listed) for Style Y (Class B) NAC. Refer to the Fire•Lite Device Compatibility Document for listed compatible devices. Two Programmable Relays and One Fixed Trouble Relay: Contact rating: 2.0 A @ 30 VDC (resistive), 0.5 A @ 30 VAC (resistive). Form-C relays, nonpower-limited, nonsupervised.

Product Line Information


MS-9050UD(E): Combination DACT/Fire Alarm Control Panel with one SLC loop. Includes main circuit board with display, chassis with transformer, backbox with door, plastic bag containing screws, cables, key, etc., manual. (For MS-9050UDC, refer to DF-60445.) PK-CD: Contains PS-Tools programming software for Windows®-based PC computer (cable not included). DP-51050: Optional dress panel for the MS-9050UD. TR-CE: Optional trim ring for semi-flush mounting. BB-2F: Optional cabinet for one or two modules. BB-6F: Optional cabinet for up to six modules mounted on CHS-6 chassis. BB-26: Battery backbox, holds up to two 25 AH batteries and CHG-75. BB-55F: Battery box, houses two 55 AH batteries CHS-6: Chassis, mounts up to six multi-modules in a BB-6F cabinet. CHG-75: Battery charger for lead-acid batteries with a rating of 25 to 75 AH. CHG-120F: Remote battery charging system for lead-acid batteries with a rating of 55 to 120 AH. Requires additional BB-55F for mounting. BAT Series: Batteries, see data sheet DF-52397. PRT/PK-CABLE: Cable printer/personal computer interface cable. PRN-6F: UL listed compatible event printer. Uses tractor-fed paper.
